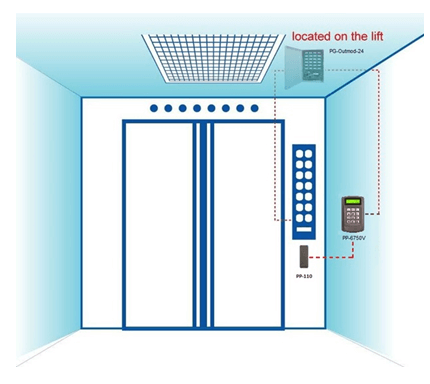

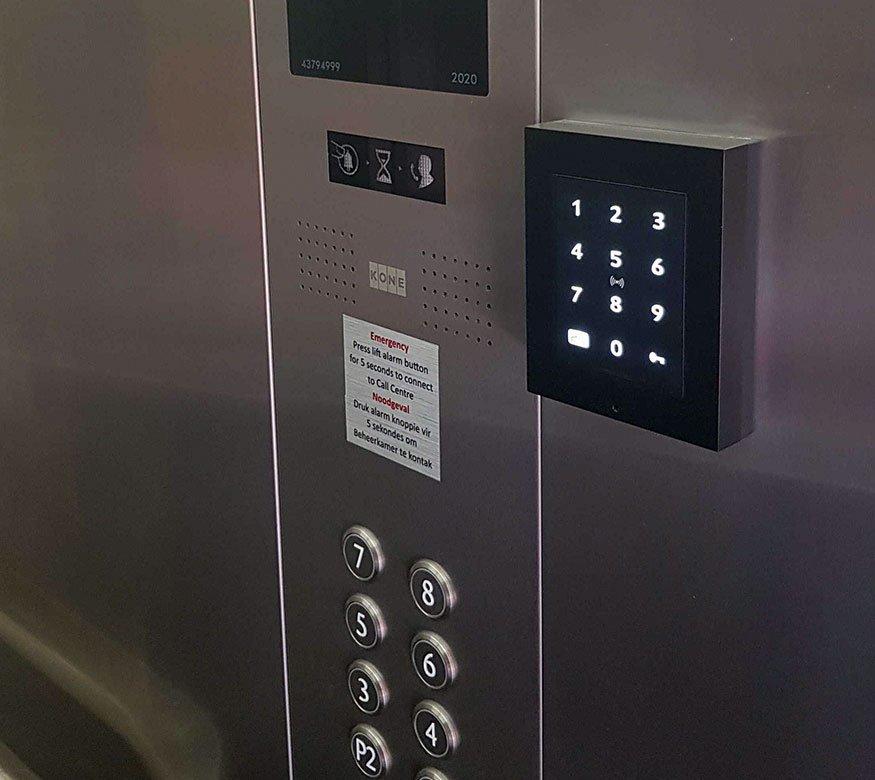

The Elevator/Lift Controller is part of the building’s Access Control System and is designed to ensure security throughout the different building levels by regulating / restricting access via the elevators or Lifts. When guests enter a valid code in the keypad or show a valid card to the reader, the controller will allow the lift to travel only to the designated floors authorized by the security clearance. Multiple actions can also be carried out by the controller as per requirements. The system allows for a security keypad or card reader to be placed inside the elevator.

Demonstration:

Bosch Elevator Controller - As part of Bosch’s Building Integration System or (BIS) – The Access Engine offers the solution to monitor and control elevators via Bosch AMC and LACi access controller series with the corresponding readers and I/O boards. The reader mounted inside the elevator activates the buttons of the floors authorized to the cardholder.

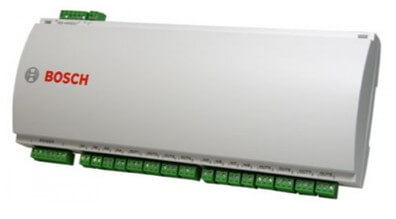

Salient details pertaining to the elevator AMC I/O extension are as follows:

• Extends elevator door template to 56 floors
• Standard rail-mountable
• 8 and 16 I/O version
• 2- and 4-state operation on inputs with software selectable terminators
• Internal and external power supply for in- and outputs selectable
• Up to 3 connectable to 1 AMC by RS485

• Usage: Compatible with PMS Systems

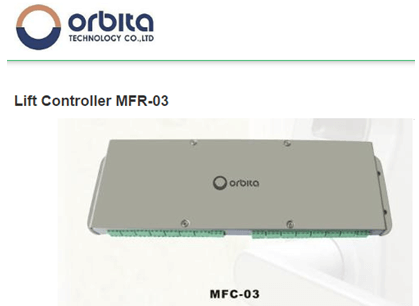

• The MFR-03 lift controller consists of Mifare elevator reader and controlling box.
• It regulates access to all floors,
• Stable working function and simple style.

• Usage: Compatible with PMS Systems

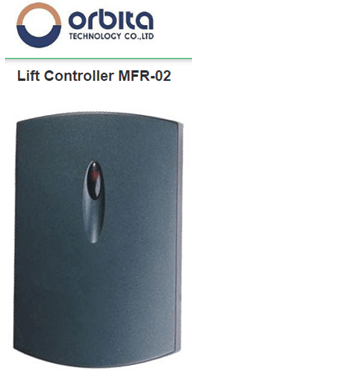

• The Classic MFR-02 lift controller consisting of Mifare elevator reader and controlling box.
• It restricts access to floors based on clearance
• Simple style

• Usage: Compatible with PMS Systems

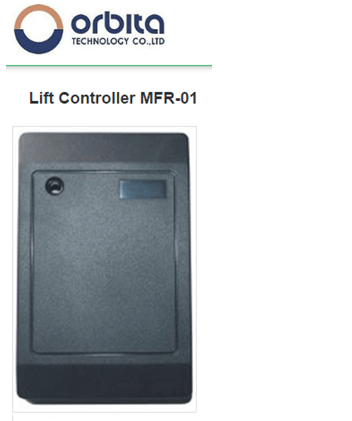

• The series first first MFR-01 lift controller consisting of Mifare elevator reader and controlling box.
• It controls the lift access to specific floors, which means people can only go to the floors for which they get the access.
• Stable Working Function.
